Linear Elliptical Shale Shakers ZS S 3.4M2 Screen Anti Corrosion Drilling Shale Shaker

Brand Name : XBSY

Model Number : ZS

Place of Origin : Sichuan，China

Certification : USE 18000,USE14000，EAC，CE，ISO9000

MOQ : 1

Packaging Details : Ply Wood Box,iron box

Delivery Time : 1-2 months

Payment Terms : TT

Supply Ability : 1000

Price : Price Negotiable

Vibration Track : Translational Elliptical / Variable Elliptical

Motor Power : 2 * 1.94 kW

Screen Size : 1165 * 585 * 40 mm

Screen Number : 4

Total Screen Area : 2.72 ㎡

Vibration Amplitude : > 5.2 mm

Vibration Intensity : > 6.5 g

Tilt Adjustment Range : -1° ~ +4°

Power Supply : AC 380V / 50HZ

Explosion-proof Grade : E* d II B T4 Gb

Weight : 2050 kg

Dimensions (L * W * H) : 2982 * 1728 * 1516 mm

Contact Now

Linear/Elliptical ZS-S Shale Shakers - 3.4㎡ Screen Area, Anti-Corrosion Coating

Built for longevity, ZS Series shakers use anti-loosening thread technology to withstand extreme vibrations. IP55-rated components (comparable to industrial pumps) and stainless-steel hardware resist corrosion. Explosion-proof certification (Ex d II B T4) ensures safety in hazardous zones. The 2200kg reinforced steel frame supports continuous operation. ​

Tailor performance to drilling needs: Choose between translational elliptical (ZS-Z/PT) or variable elliptical (ZS-S) vibration tracks. Models support 4–5 screens (1165×585×40mm) and integrate with double/triple bases or mud tanks. Adjustable tilt and amplitude settings handle fluids from water to high-viscosity mud. ​​

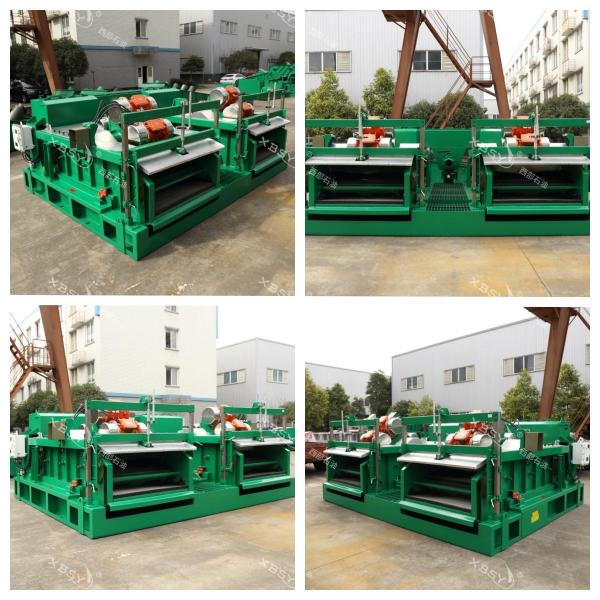

​Linear Elliptical Shale Shakers ZS S 3.4M2 Screen Anti Corrosion Drilling Shale Shaker

Key Features
  • Two motion tracks - Adaptable to different working condition requirements
  • High-quality motor - Designed for harsh outdoor explosion-proof environments
  • Frame screen & adjustable deck angle - Easy screen replacement with maintenance-free operation
  • Patented fast pressing screen - Simplifies screen replacement process
  • Anti-loosening thread technology - Ensures reliable connections in vibrating conditions
  • All-round anti-splash design - Significantly reduces mud splash during operation
  • Heavy-duty anti-corrosion coating - Extends equipment lifespan
  • Integrated design options - Available with double or triple integral base and integral mud box
Technical Specifications
Model ZS-S
Vibration Track Translational Elliptical / Variable Elliptical
Motor Power 2 * 1.94 kW
Screen Size 1165 * 585 * 40 mm
Screen Number 4
Total Screen Area 2.72 ㎡
Vibration Amplitude > 5.2 mm
Vibration Intensity > 6.5 g
Tilt Adjustment Range -1° ~ +4°
Power Supply AC 380V / 50HZ
Explosion-proof Grade E* d II B T4 Gb
Weight 2050 kg
Dimensions (L * W * H) 2982 * 1728 * 1516 mm
